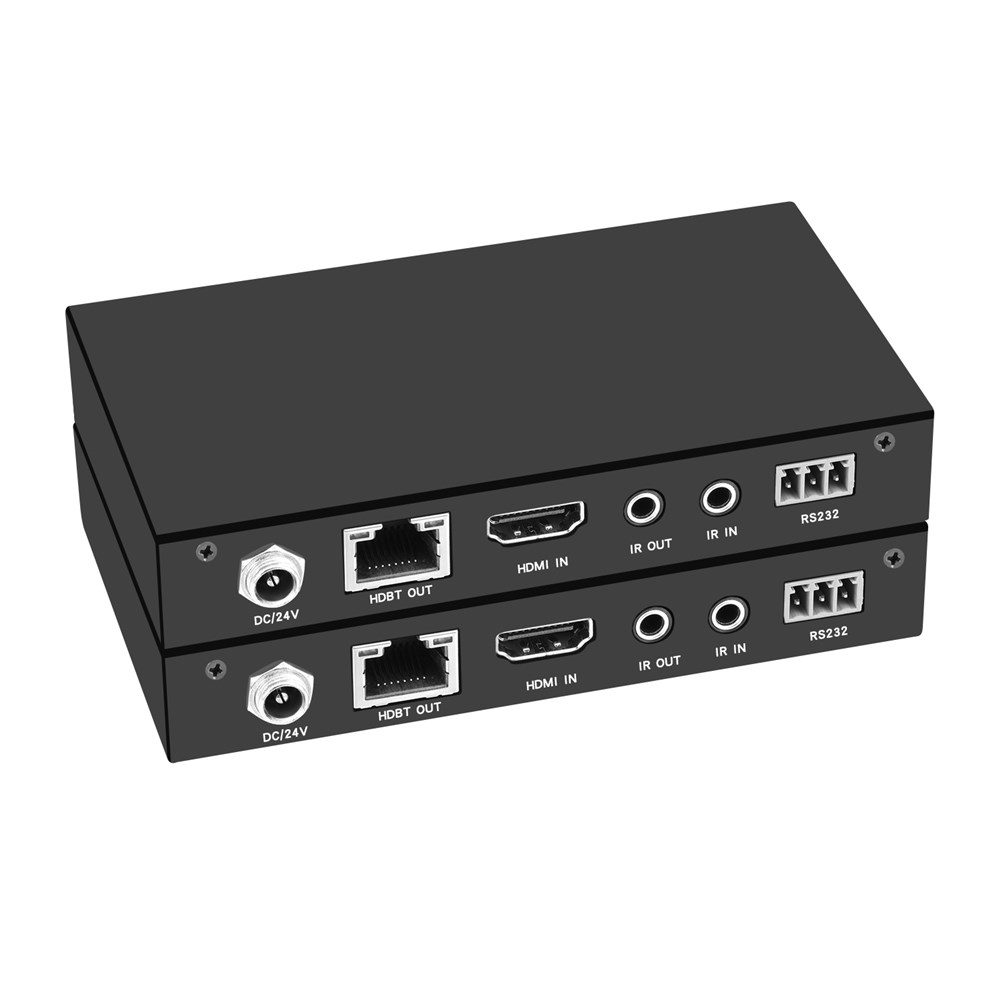

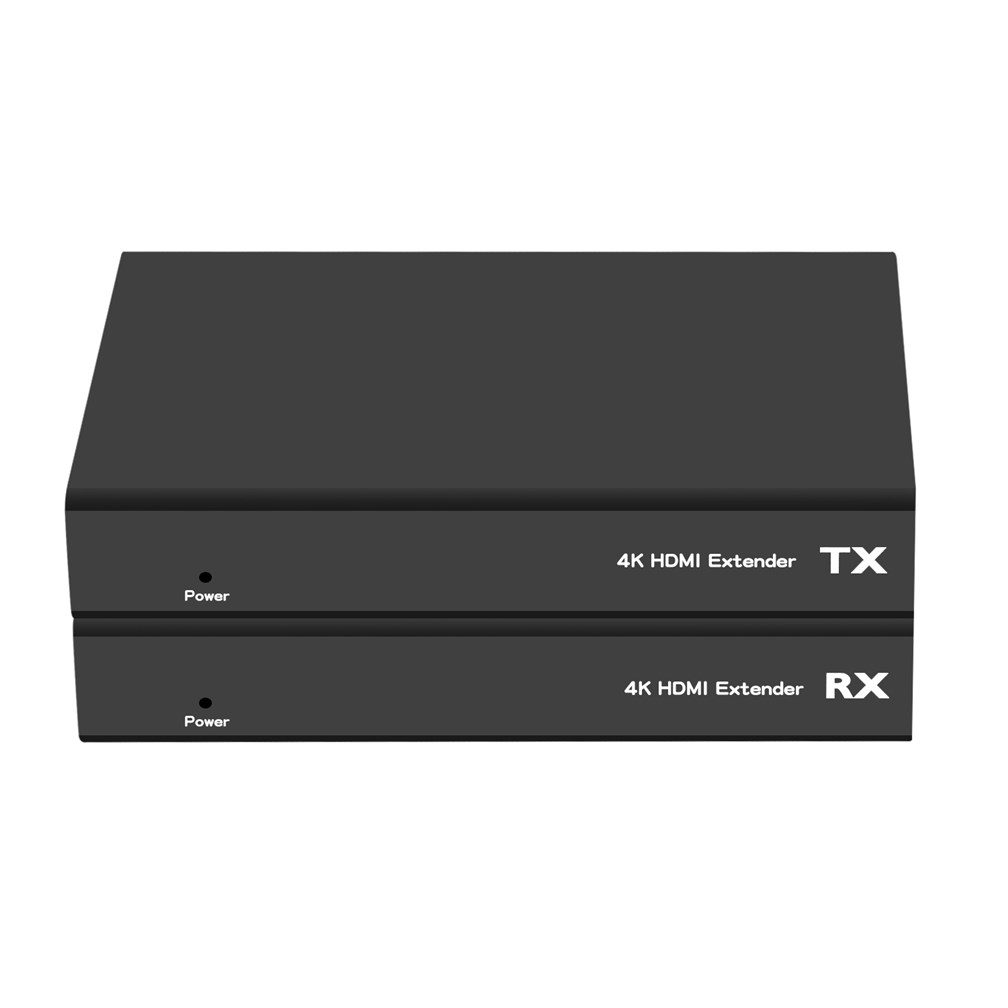

VK-70H HD BaseT Extender Over Cat6/Cat7 70m

VK-70H HD BaseT Extender Over Cat6/Cat7 70m

Product Specification:
1. One pair as a full functional module, no need for setting.
2. Supports bi-directional POC(Power Over Cables)function,either TX or RX powered 12V@2A,another device will no need power form the DC jack. POC Power Consumption less than 10W.
3. Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distances transmission.
4. UTP cable termination follows the standard of IEEE-568B.
5. Transmission distance:
70 meters: 1080P @60Hz
40 meters: 4K x 2K@30Hz
6. HDMI supported.
7. HDCP compliant.
8. Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit.
9. Transfer Bidirectional Infrared control signal together with the HDMI signal.
10. Supports CEC.
11. Supports RS232.
Product Description

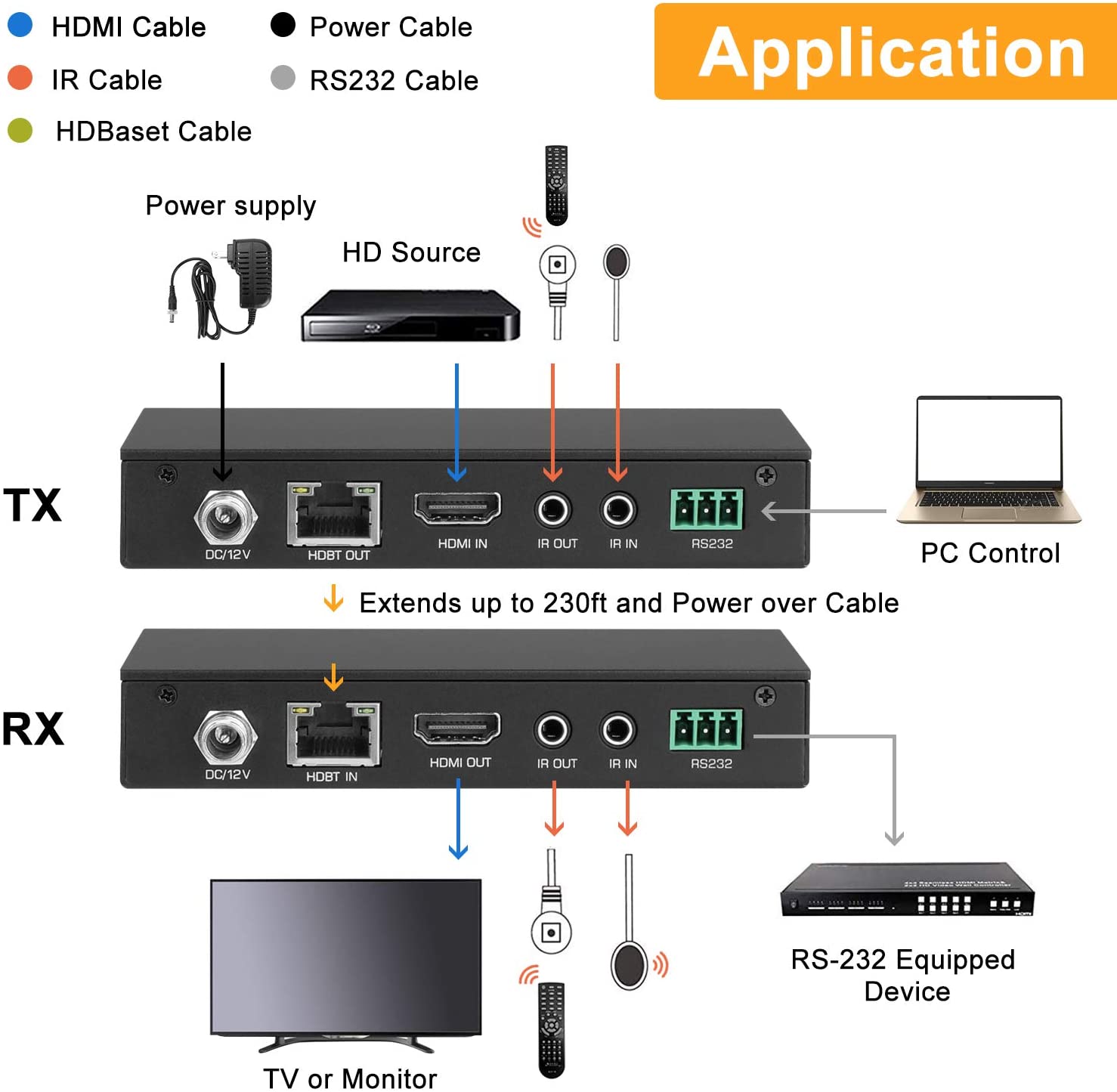

The HDMI Extender over cat5e/cat6 is a tool for extending your HDMI signal over long distance to a compatible display. It is designed to convert HDMI signal to standard HDBaseT signal and transmit by internet cable. Its also supports Transfer Bidirectional Infrared control signal together with the HDMI signal, so you can control the Source in the sink side which is 100 meters outside, also you can control the sink in the Source side which is 100 meters outside using the HDMI Extender.
