VK-70H HD BaseT Extender Over Cat6/Cat7 70m

VK-70H HD BaseT Extender Over Cat6/Cat7 70m

Product Specification:

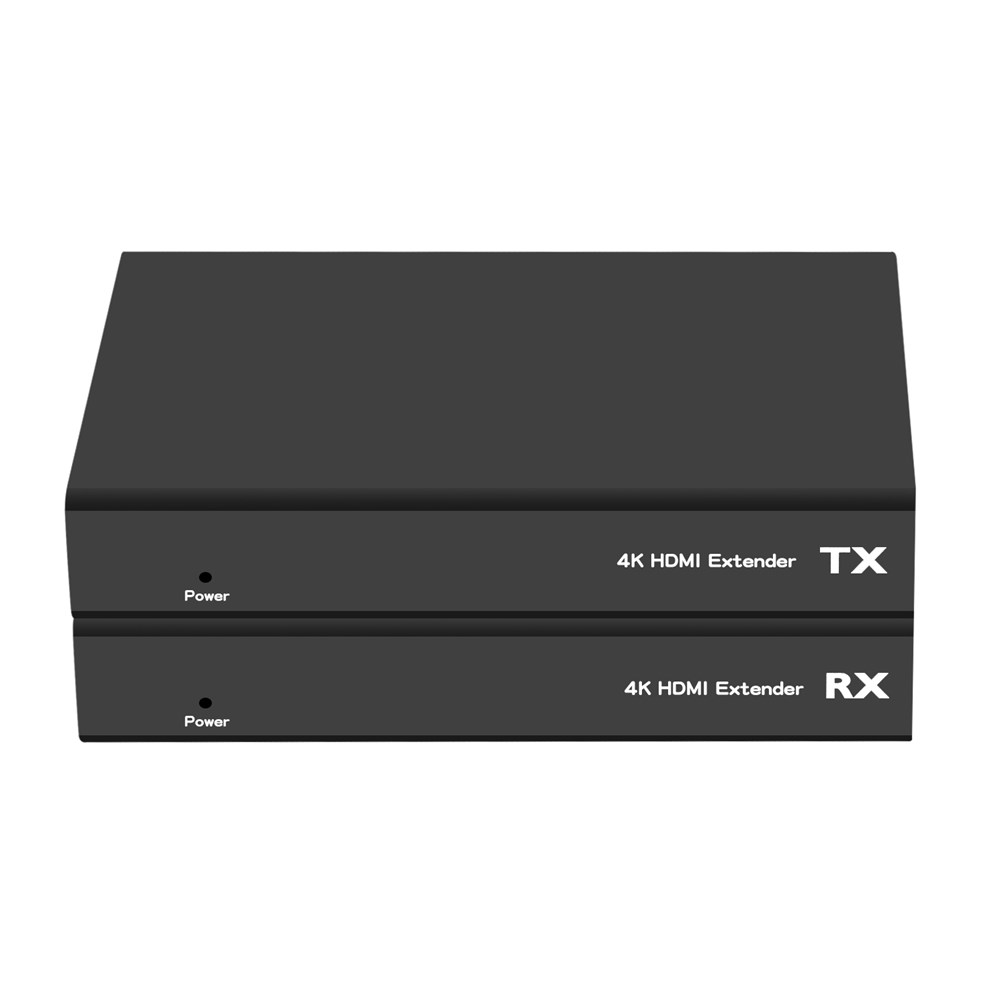

1. One pair as a full functional module, no need for setting.
2. Supports bi-directional POC(Power Over Cables)function,either TX or RX powered 12V@2A,another device will no need power form the DC jack. POC Power Consumption less than 10W.
3. Use single UTP LAN cable (CAT-5E/6) to substitute HDMI cable to achieve long distances transmission.
4. UTP cable termination follows the standard of IEEE-568B.
5. Transmission distance:
70 meters: 1080P @60Hz
40 meters: 4K x 2K@30Hz
6. HDMI supported.
7. HDCP compliant.
8. Full HD support: 1080p@60Hz@48 bit/pixels, 1080p@120Hz@24 bit/pixels, 3D 1080P60Hz and 4K x 2K@30Hz@24bit.
9. Transfer Bidirectional Infrared control signal together with the HDMI signal.
10. Supports CEC.
11. Supports RS232.
Product Description

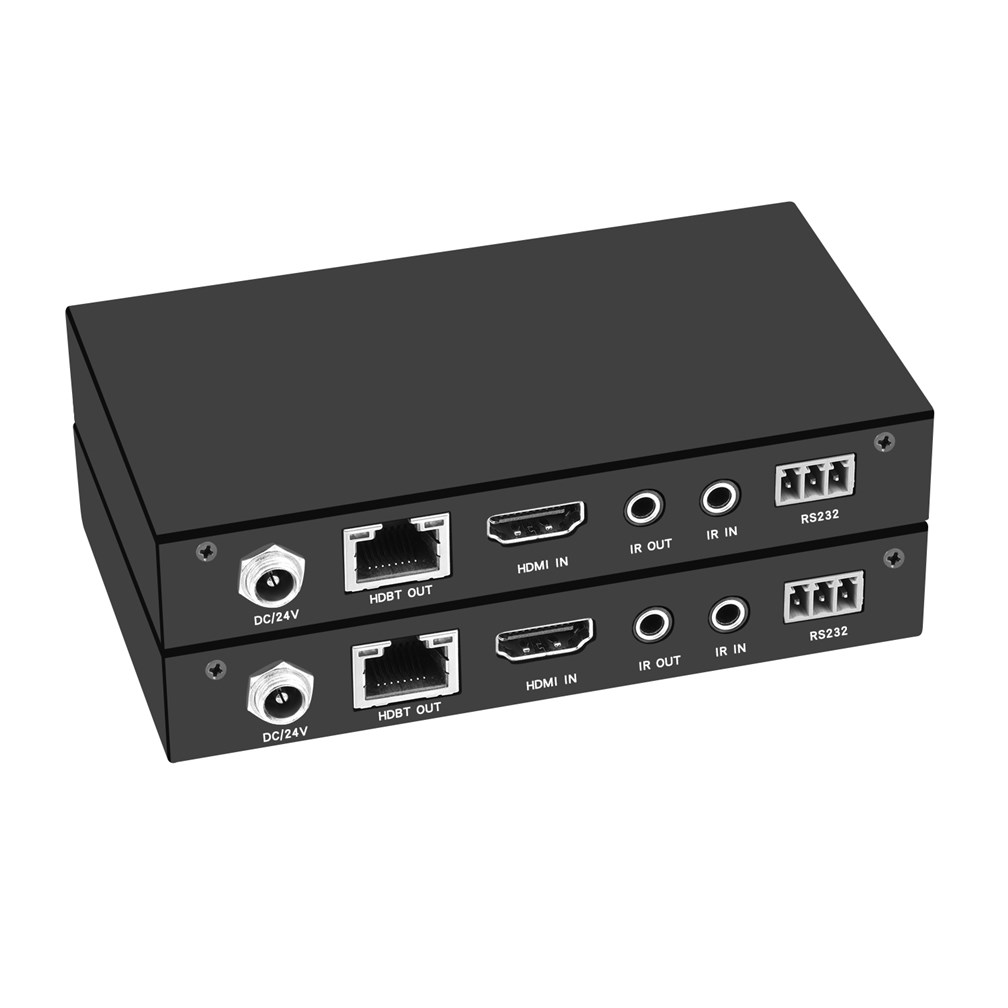

 The HDMI Extender over cat5e/cat6 is a tool for extending your HDMI signal over long distance to a compatible display. It distributes HDMI signal via CAT5e/CAT6a/CAT7 cable at 50~70m/POC, and enables IR and RS232 pass-through to control local source device from remote or far-end display.
