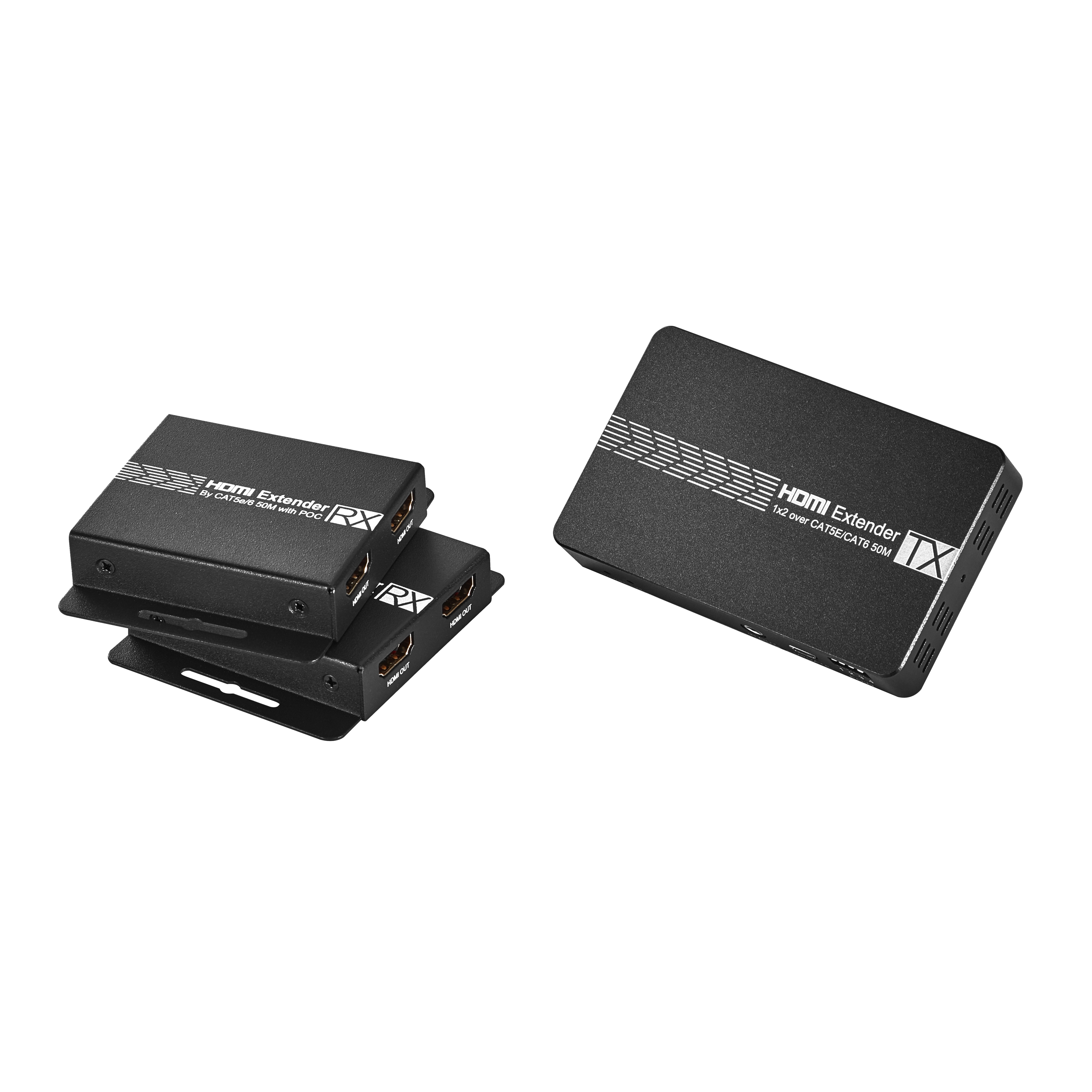

VK-E12T 1080P HDMI Splitter 1X2 extender with 5 HDMI outputs 50~70m
Product Specification:
Features:
1. Compliant with HDMI1.3, HDCP 1.2 and DVI 1.0.
2. Full HD support: 1080p@60Hz@24 bit/pixels.
3. Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio. Operates for TMDS clock frequencies up to 148.5MHz.
4. Support Power over cable function.
5. TX supports HDMI loop out,each RX supports 2xHDMI loop out.
6. Transmission Range: Extends 1080p resolution up to 164ft/50m in Cat5e/6,70m in Cat6a.
7. UTP cable termination follows the standard of IEEE-568B.
8. Supports EDID control via EDID selector.
