VK-DACV Digital to Anolog Audio Converter with Volume Control

VK-DACV Digital to Anolog Audio Converter with Volume Control

Product Specification:

Model No.                                            VK-DACV
Input Audio     Coaxial or Toslink digital audio
Output Audio    L/R audio

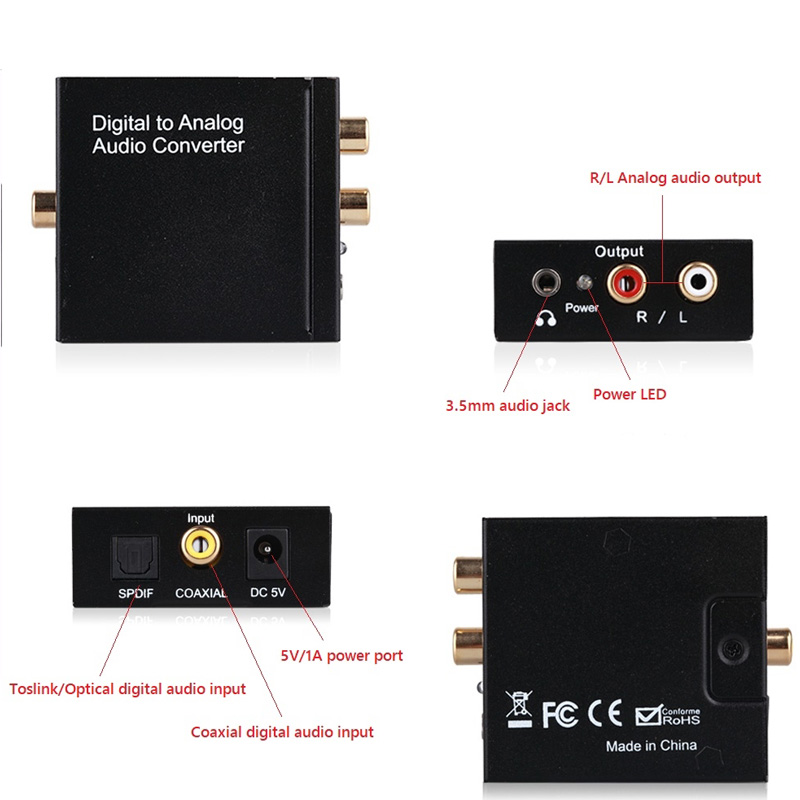

Input audio connector    Toslink, 1XRCA(Coaxial)
Output audio connector    2XRCA（R/L）
Sampling rate    32, 44.1, 48 and 96 KHz
Size(L-W-H)     55X59X22mm
Power requirement    5V/1A
External Power Supply    5V DC@1A
Weight (Net)    140g
Power Consumption    0.5W (max)
Operating Temperature
    0 ℃ to +70℃
Operating Humidity    10% to 85 % RH (no condensation)
Storage Temperature    -10℃ to +80℃
Storage Humidity     5% to 90 % RH (no condensation)

Product Description

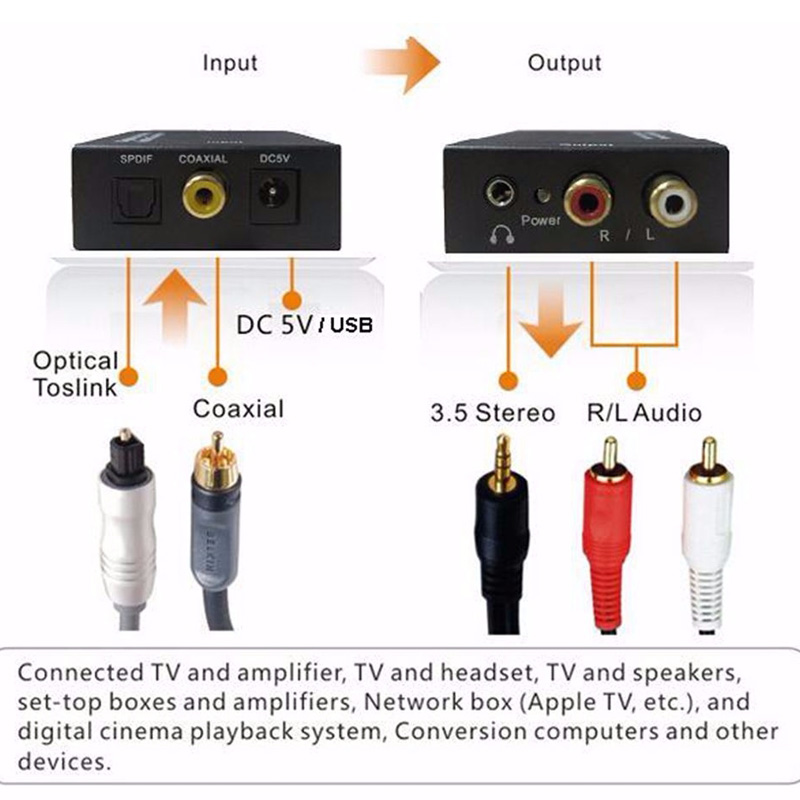

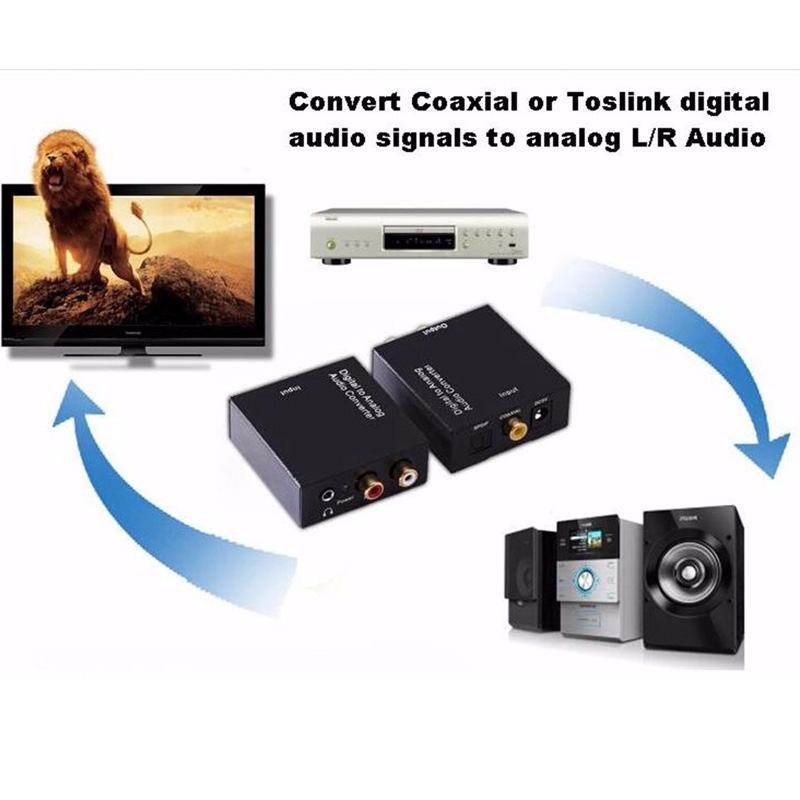

This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks. This Converter is small in size and quite easy to install.


Features:

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:

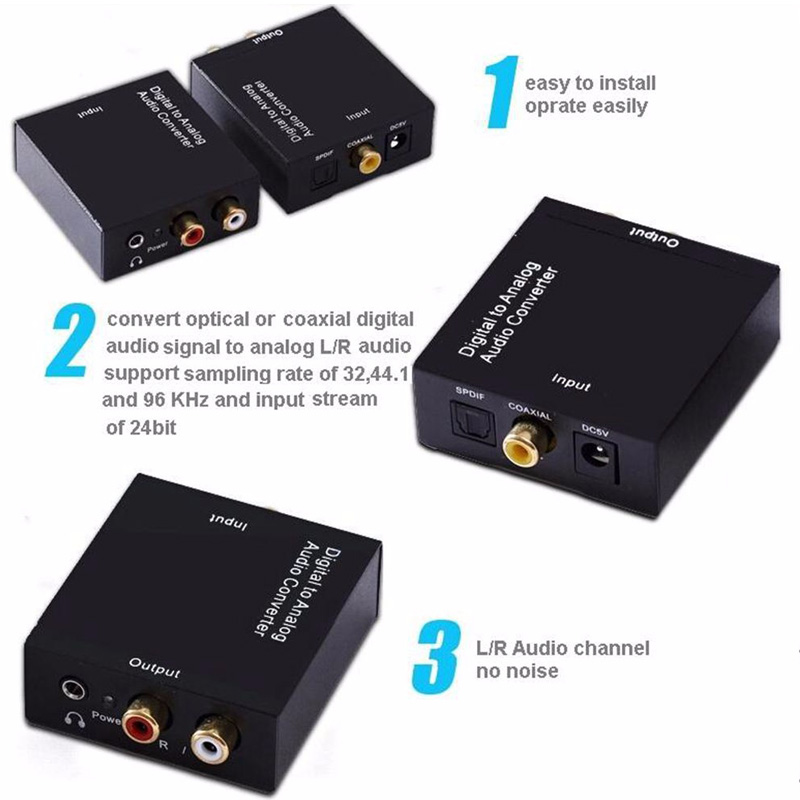

1. Converts Coaxial or Toslink digital audio signals to analog L/R audio
2. Supports sampling rate at 32, 44.1, 48 and 96 KHz.
3. 24-bit S/PDIF incoming bit stream on left and right channels
4. Provides electromagnetic-noise-free transmission.

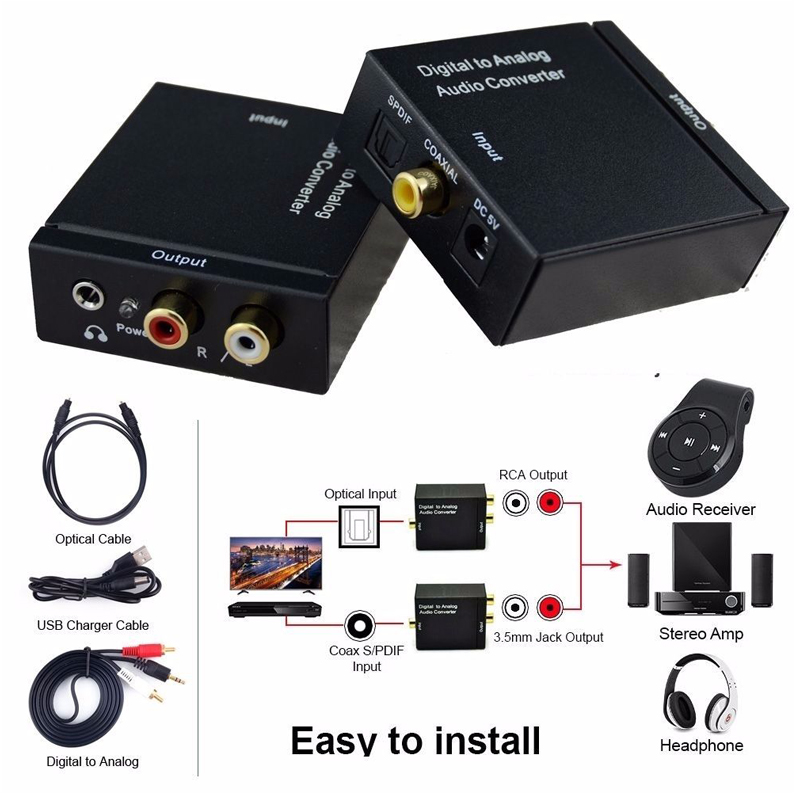

5. Easy to install and simple to operate.
6. Add a Volume Control
7. Converts Coaxial/Toslink digital audio signals to analog L/R audio
8. Matal housings and add a earphone port
