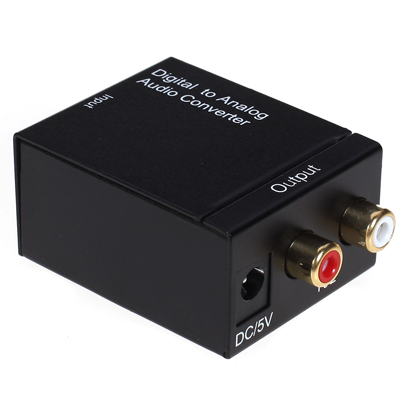

VK-DAC Digital to Analog Audio Converter

VK-DAC Digital to Analog Audio Converter

Product Specification:
Model No.                                              VK-DAC
Input Audio Coaxial or Toslink digital audio
Output Audio L/R audio
Input audio connector Toslink、1XRCA(Coaxial)
Output audio connector 2XRCA（R/L）
Sampling rate 32, 44.1, 48 and 96KHz
Size(L-W-H) 51X41X26MM
Weight (Net) 78g
Operating Temperature 0 ℃ to +70℃
Operating Humidity 10% to 85 % RH (no condensation)
Storage Temperature -10℃ to +80℃
Storage Humidity 5% to 90%RH ( no condensation)
External Power Supply 5V DC@1A
Power Consumption 0.5W(max)



Product Description

This Digital to Analog Audio Converter is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA-style jacks. This Converter is small in size and quite easy to install.


Features:

This Converter has many features that enable it to perform in a superior manner. Among those features you will find:
1. Converts Coaxial or Toslink digital audio signals to analog L/R audio
2. Supports sampling rate at 32, 44.1, 48 and 96 KHz.
3. 24-bit S/PDIF incoming bit stream on left and right channels
4. Provides electromagnetic-noise-free transmission.
5. Easy to install and simple to operate.

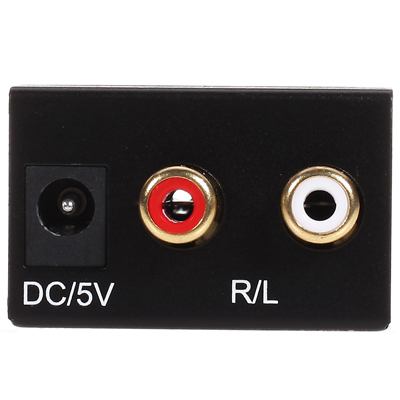

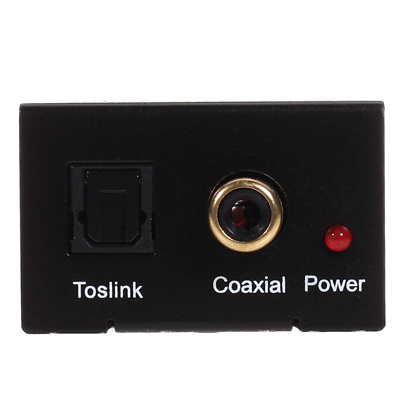

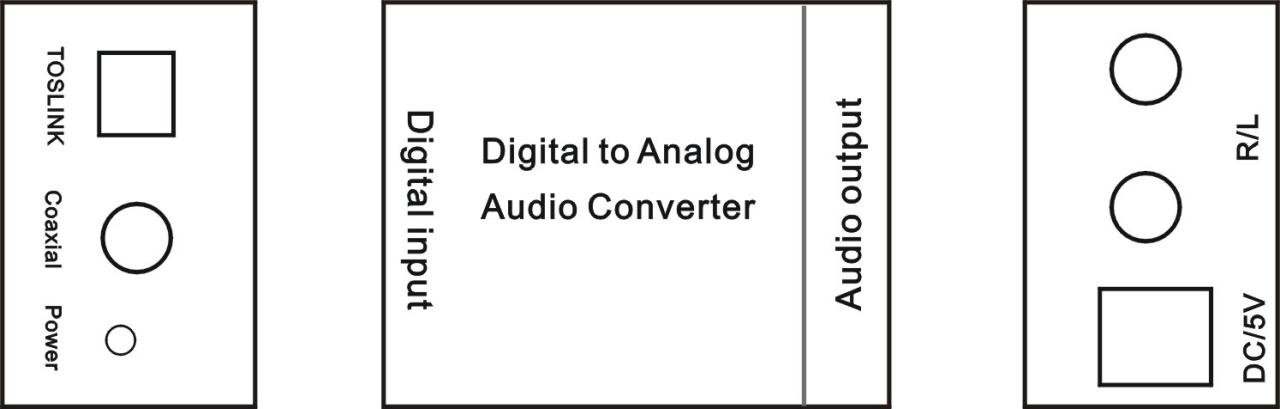

Panel Description::

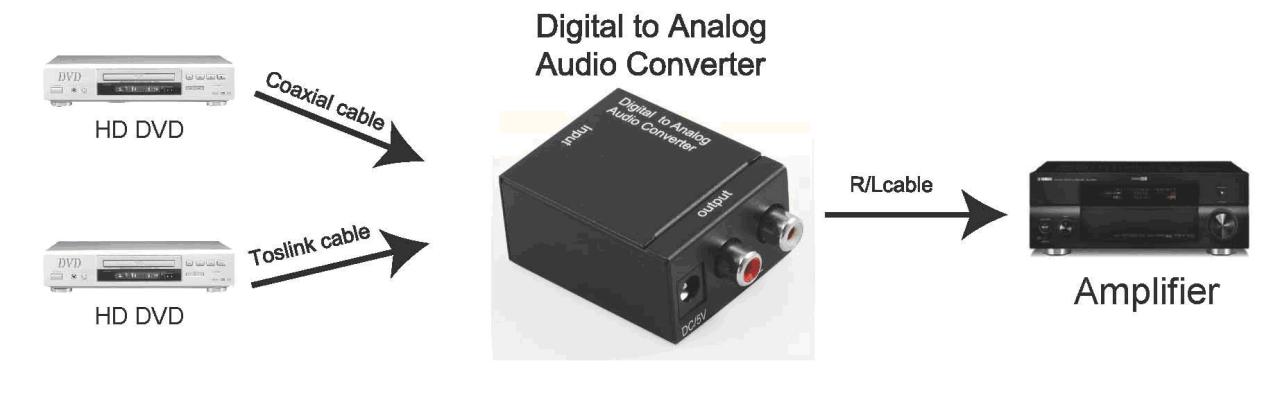

Connection Diagram:
