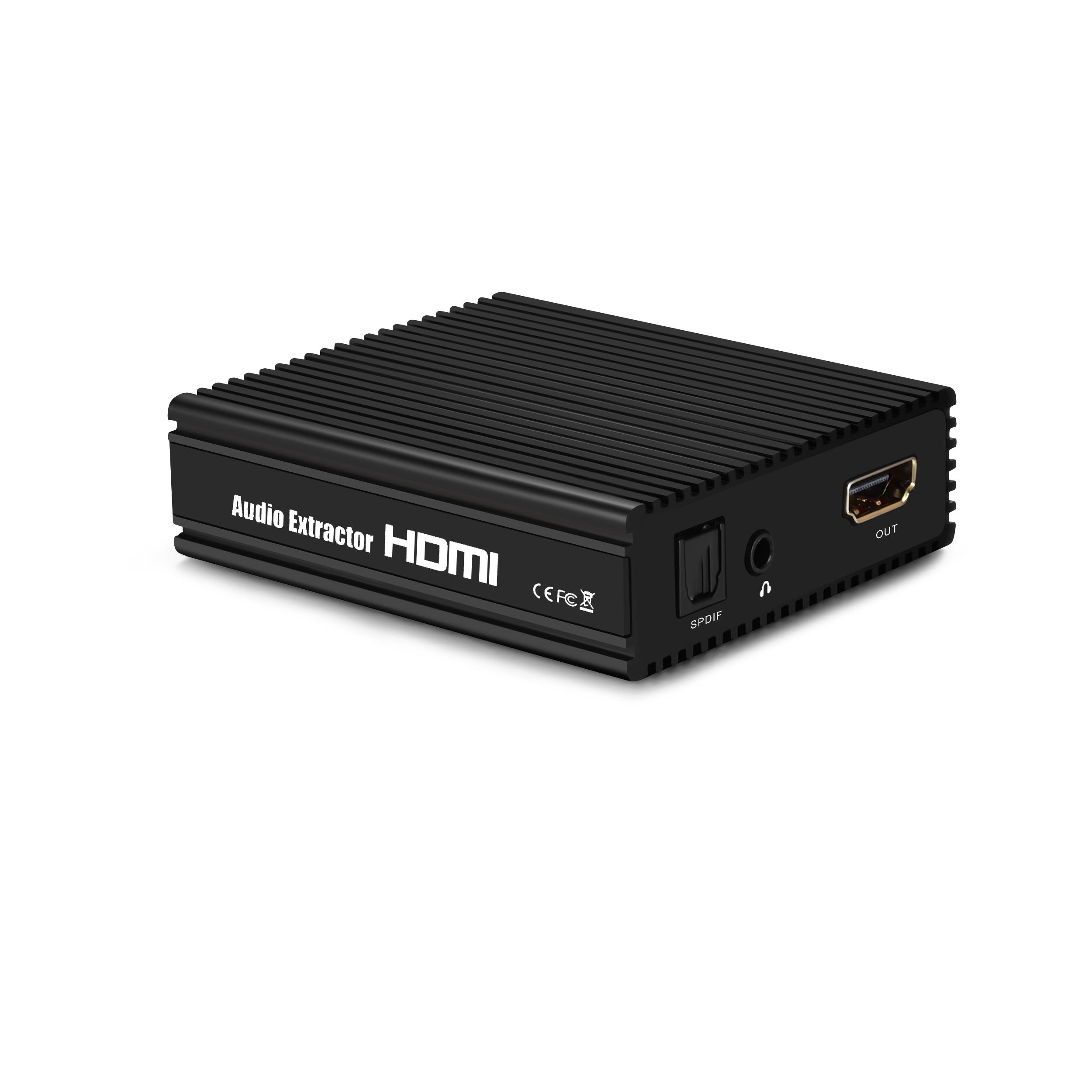

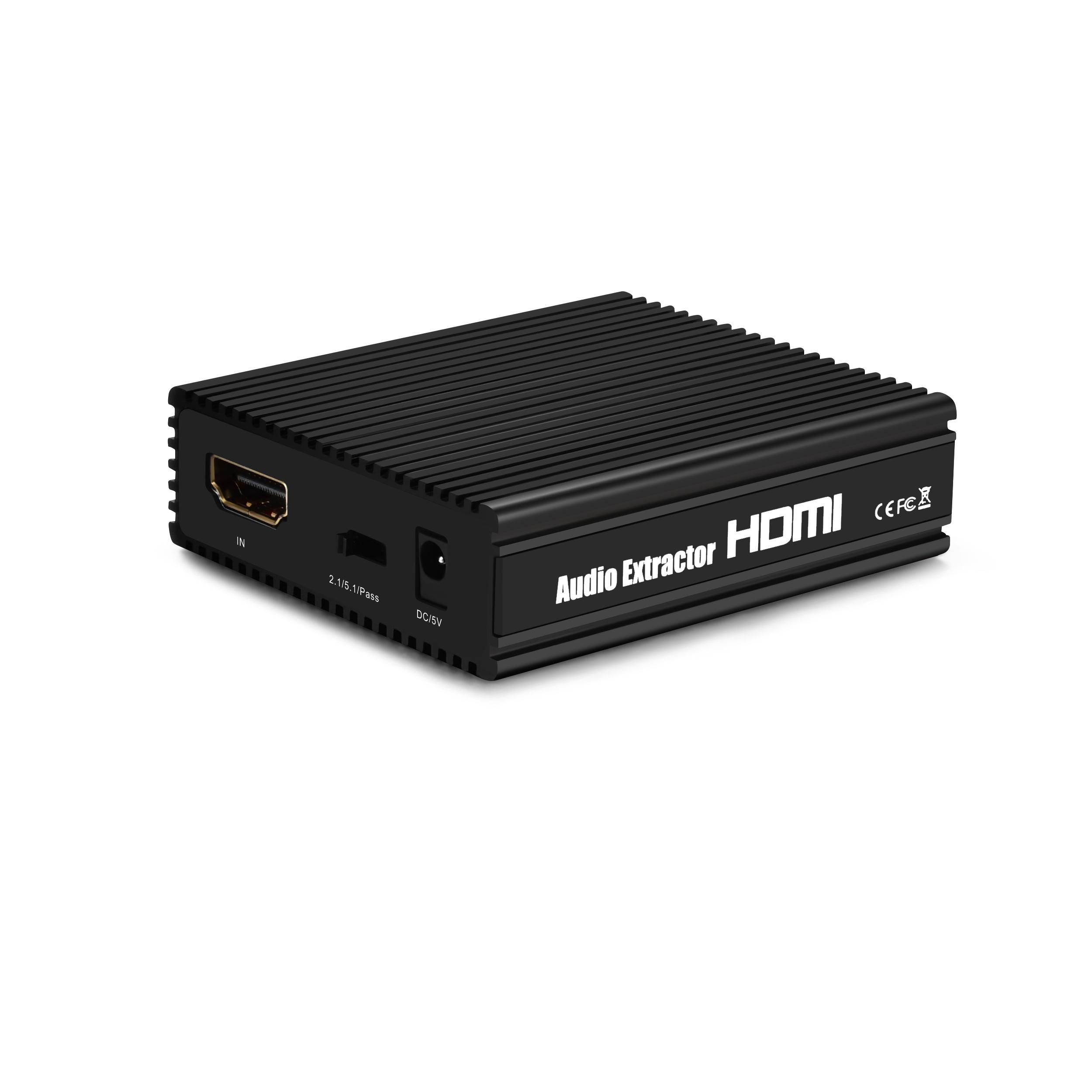

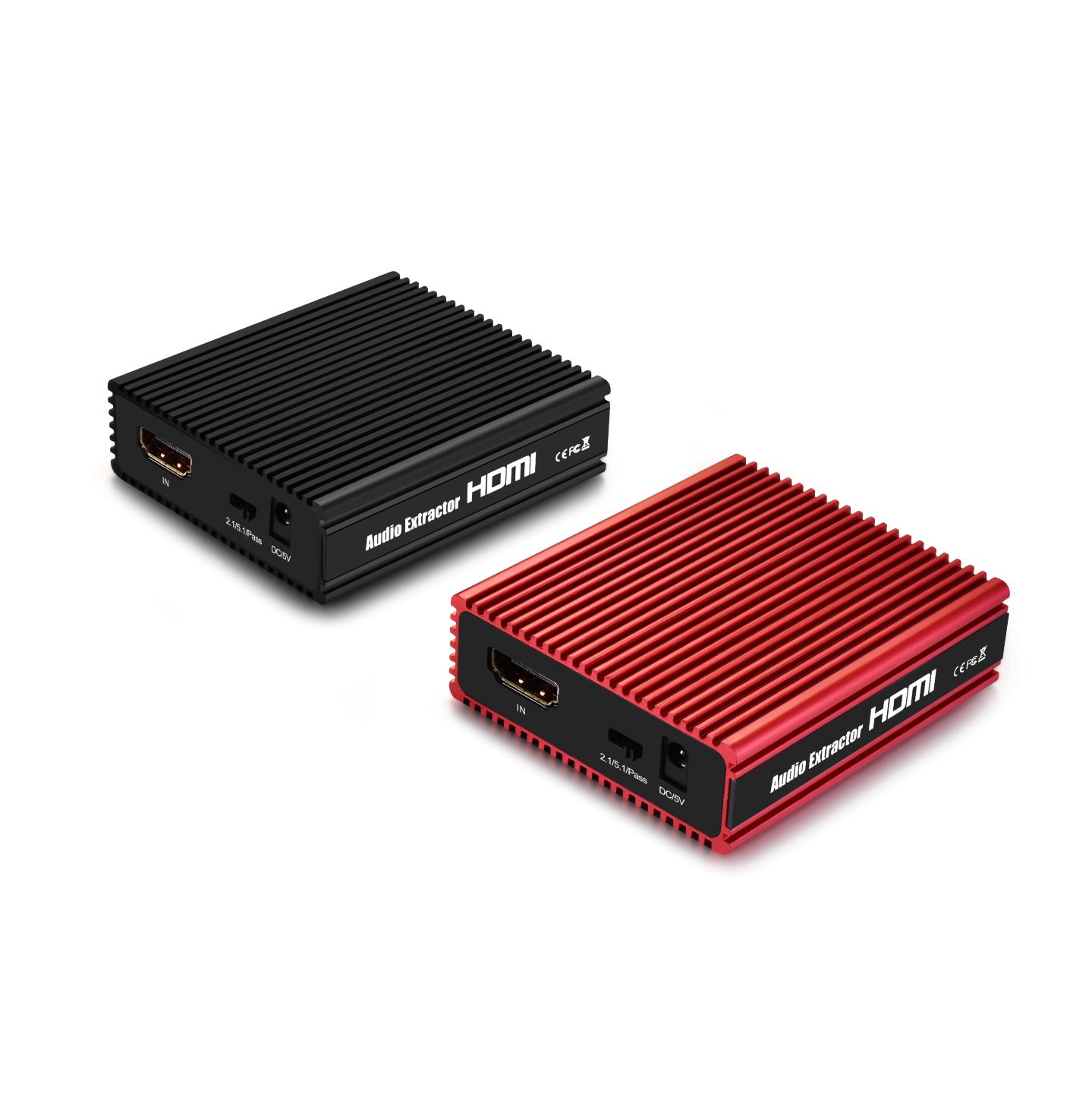

VK-C5 4K audio extractor

VK-C5 4K audio extractor

Product Specification:
1. HDCP 1.4 and DVI compliant
2. Video resolutions up to 4K@30Hz
3. Extracts HDMI audio to multi-channel optical (SPDIF) or 3.5mm analog audio
4. HDMI and Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH.
5. 3.5mm audio supports LPCM 2CH,Dolby Digital 2CH，DTS 2CH
6. Supports HDMI audio pass through
7. Audio sample rates up to 192kHz
8. Audio output support 2.0CH/5.1CH
9. With Audio EDID
Product Description

The HDMI Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo 3.5mm audio outputs. Further, both input and output HDMI support video resolution up to 4K@30Hz.It supports digital audio formats LPCM 2CH, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz.
