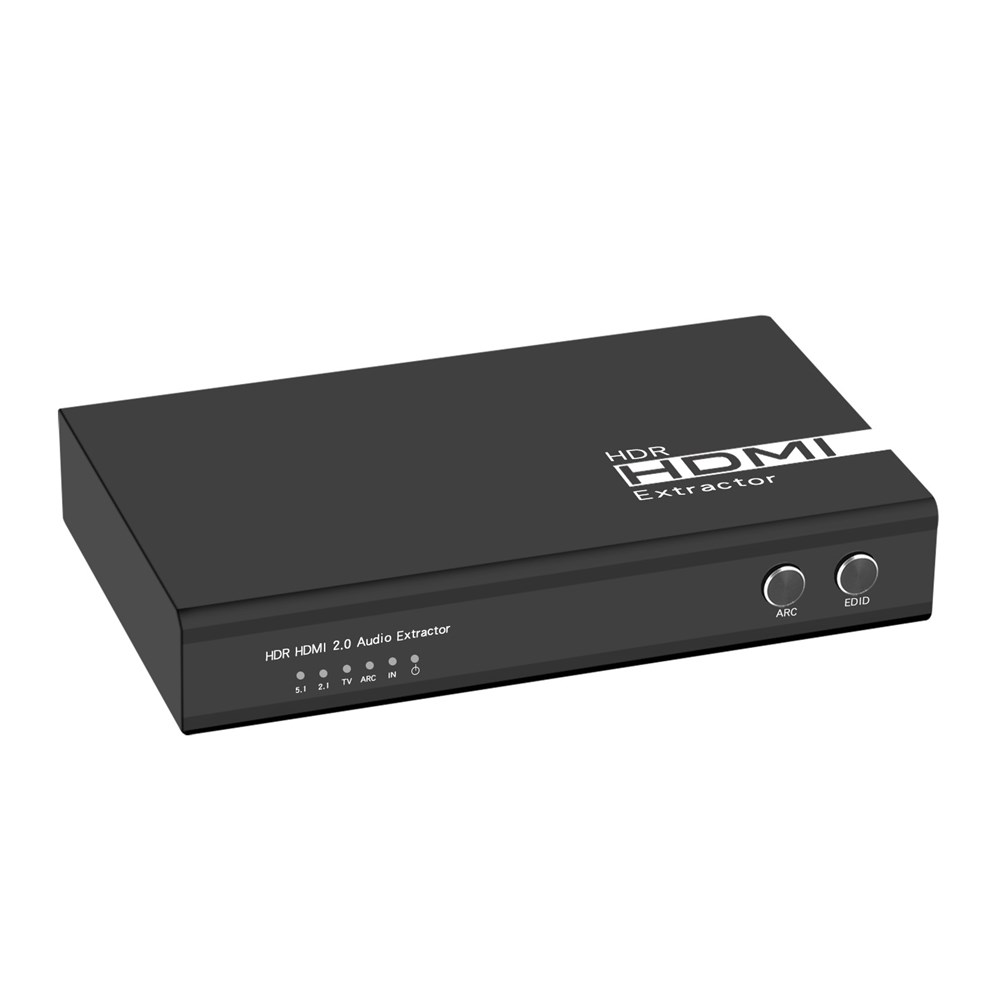

VK-C1 18G HDR Audio Extractor

VK-C1 18G HDR Audio Extractor

Product Specification:
1.18Gbps, HDCP 2.2 and DVI compliant
2.Video resolutions up to 4K2K@50/60Hz (YUV444)

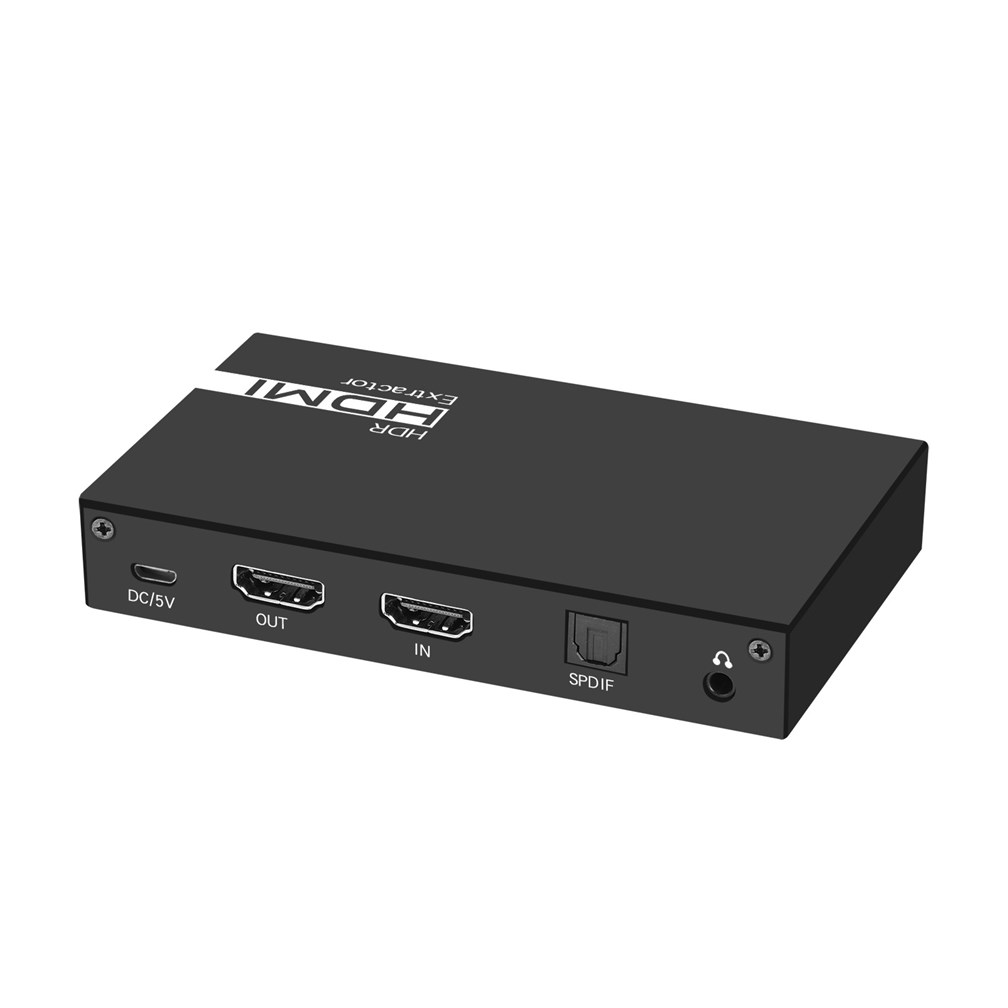

3.Extracts HDMI audio to multi-channel optical (SPDIF) or 3.5mm analog audio
4.Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH• Supports HDMI High Bit Rate(HBR) audio pass through
5.Audio sample rates up to 192kHz
6.10bits HDR (High Dynamic Range) pass through
7.Audio output support PASS/2.0CH/5.1CH
8.With ARC and Audio EDID
9.No loss of quality
10.Need 5V/ 1Apower adapter
11.Installs in minutes
Product Description
The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo 3.5mm audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.
