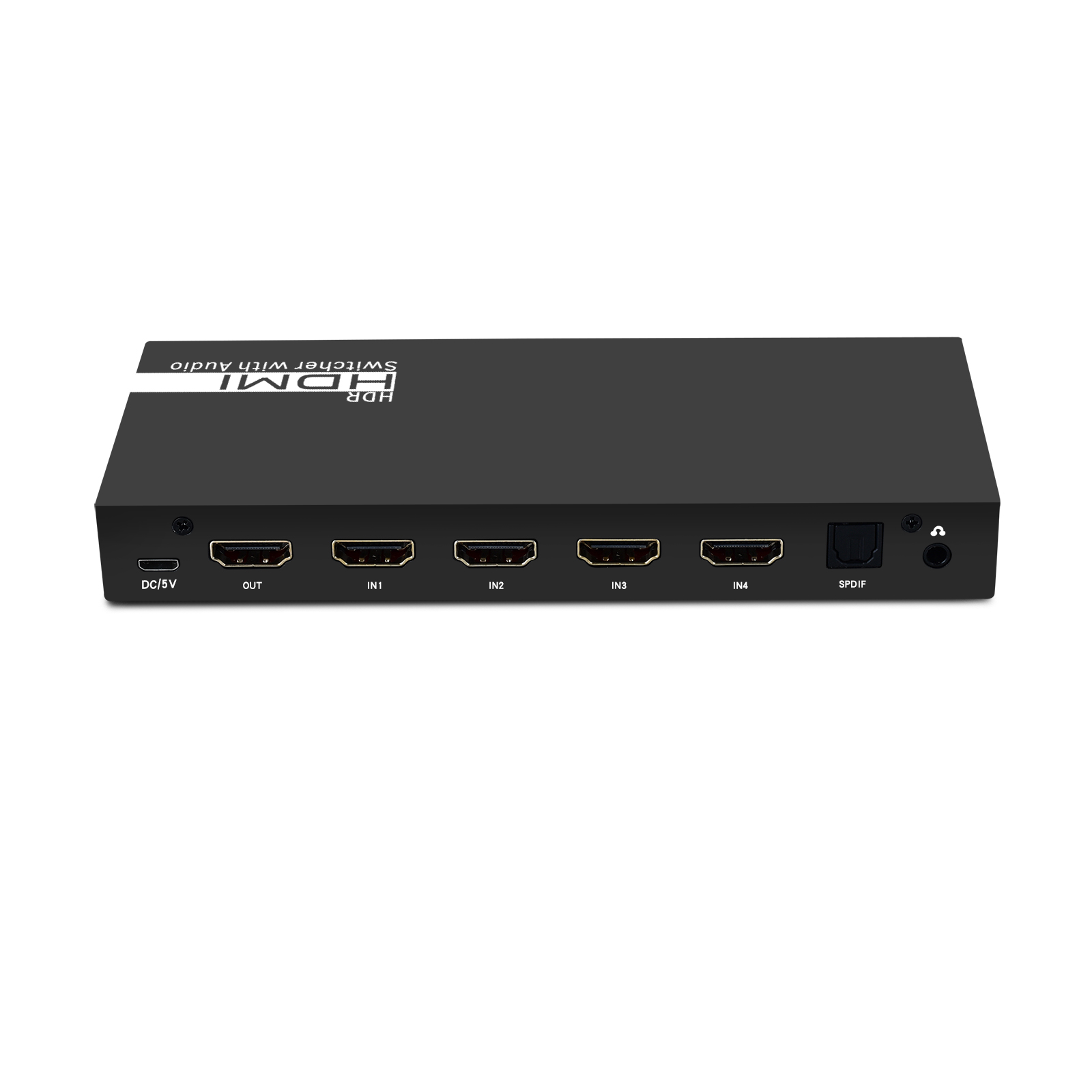

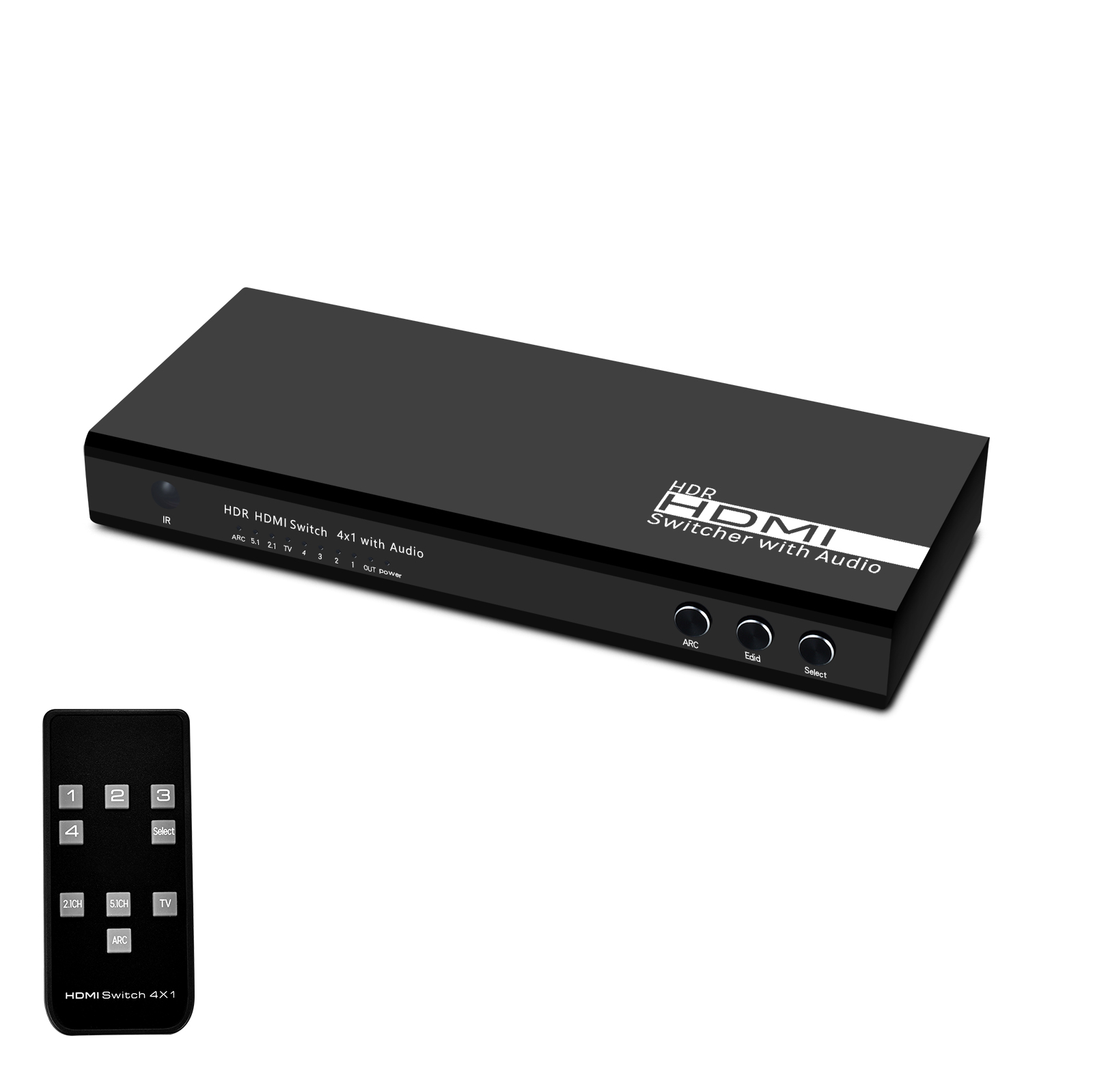

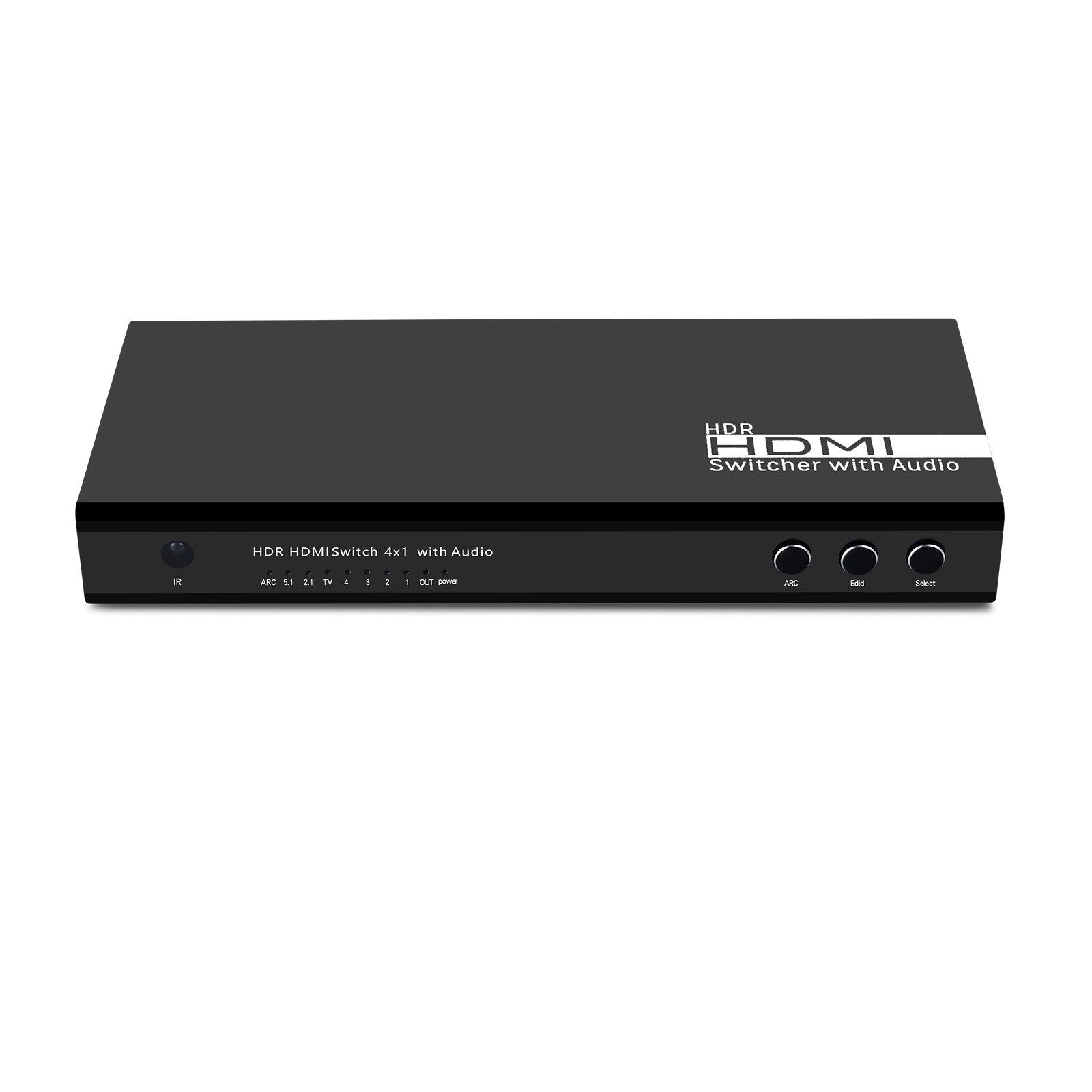

VK-TC02 HDMI2.0 4X1 Switch

VK-TC02 HDMI2.0 4X1 Switch

Product Specification:
Model No.                 VK-TC02
Input  4 xHDMI
Output                 1 xHDMI
HDMI version hdmi 2.0
Resolution  support  4K@60HZ ,1080p/3D
Case Material Aluminium
Video color format 8/10/12 bit deep color
DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080P
Design  Unique
Power Supply 5V/1A
Switcher  Button control and IR control



Product Description

Features :


4 HDMI source Input, switch to 1 HDMI output.
With SPDIF & R/L audio extract.
SPDIF Output supports up to 5.1CH Dolby Digital, DTS Audio;
Analog RCA output supports 2CH PCM stereo audio
Three Audio EDID settings: 2.0CH/5.1CH/Auto.
HDCP & CEC pass through.
Support HDMI2.0,   HDCP 1.4,  4:2:0
Support up 4K@60HZ
Support audio extractor
