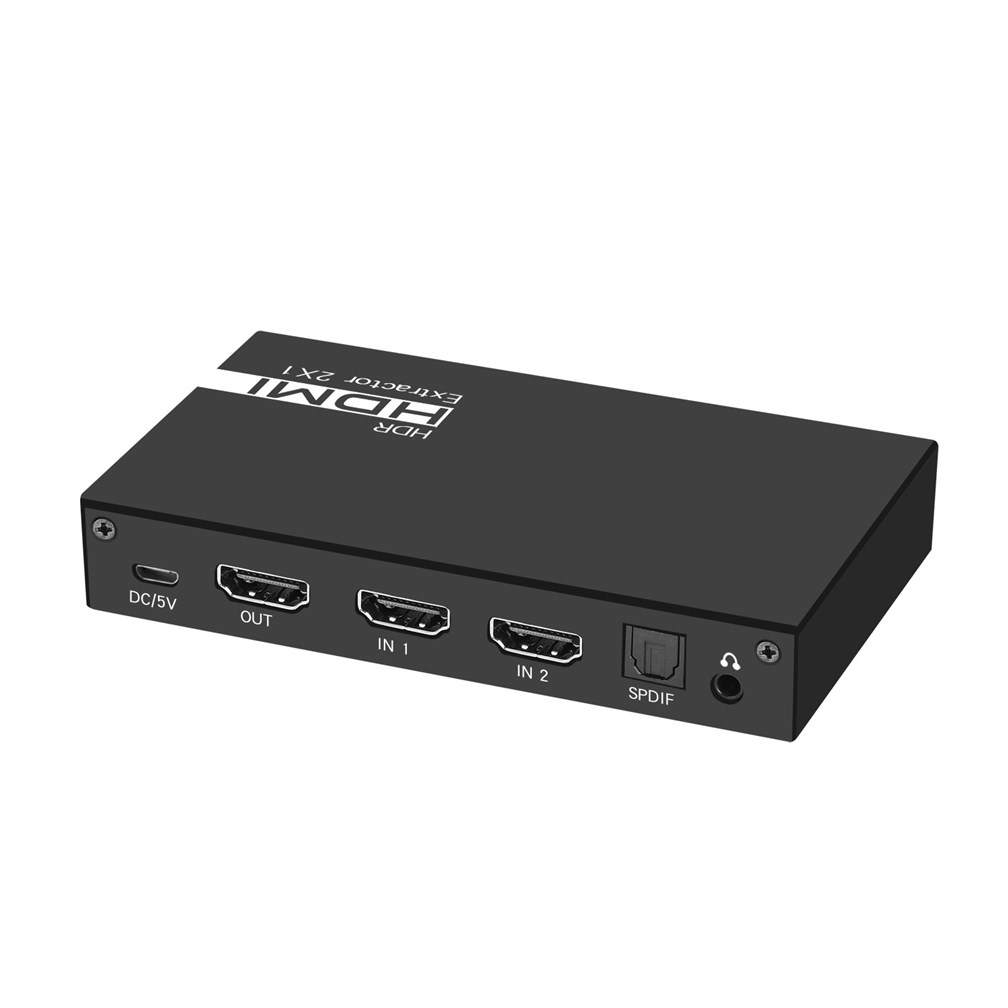

VK-C2 HDR HDMI 2.0 Audio Extractor 2x1

VK-C2 HDR HDMI 2.0 Audio Extractor 2x1

Product Specification:
1.2 HDMI Input,1 HDMI Output
2.HDMI 2.0b (18Gbps), HDCP 2.2 and DVI compliant
3.Video resolutions up to 4K2K@50/60Hz (YUV444)
4.Extracts HDMI audio to multi-channel optical (SPDIF) or 3.5mm analog audio
5.Optical audio supports LPCM 2CH, Dobly Digital 2/5.1CH, DTS 2/5.1CH
6.Supports HDMI High Bit Rate(HBR) audio pass through
7.Audio sample rates up to 192kHz
8.10bits HDR (High Dynamic Range) pass through
9.Audio output support PASS/2.0CH/5.1CH
10.With ARC and Audio EDID
9.No loss of quality
11.Need 5V/ 1Apower adapter
12.Installs in minutes
Product Description
The HDMI 18Gbps Audio Extractor could extract audio signals from any HDMI compliant source to digital optical or analog stereo 3.5mm audio outputs. Further, both input and output HDMI support video resolution up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) pass through and HDMI high resolution digital audio formats bypass, LPCM 2CH, Dolby TrueHD, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz. HDCP 2.2 and CEC bypass are supported.
