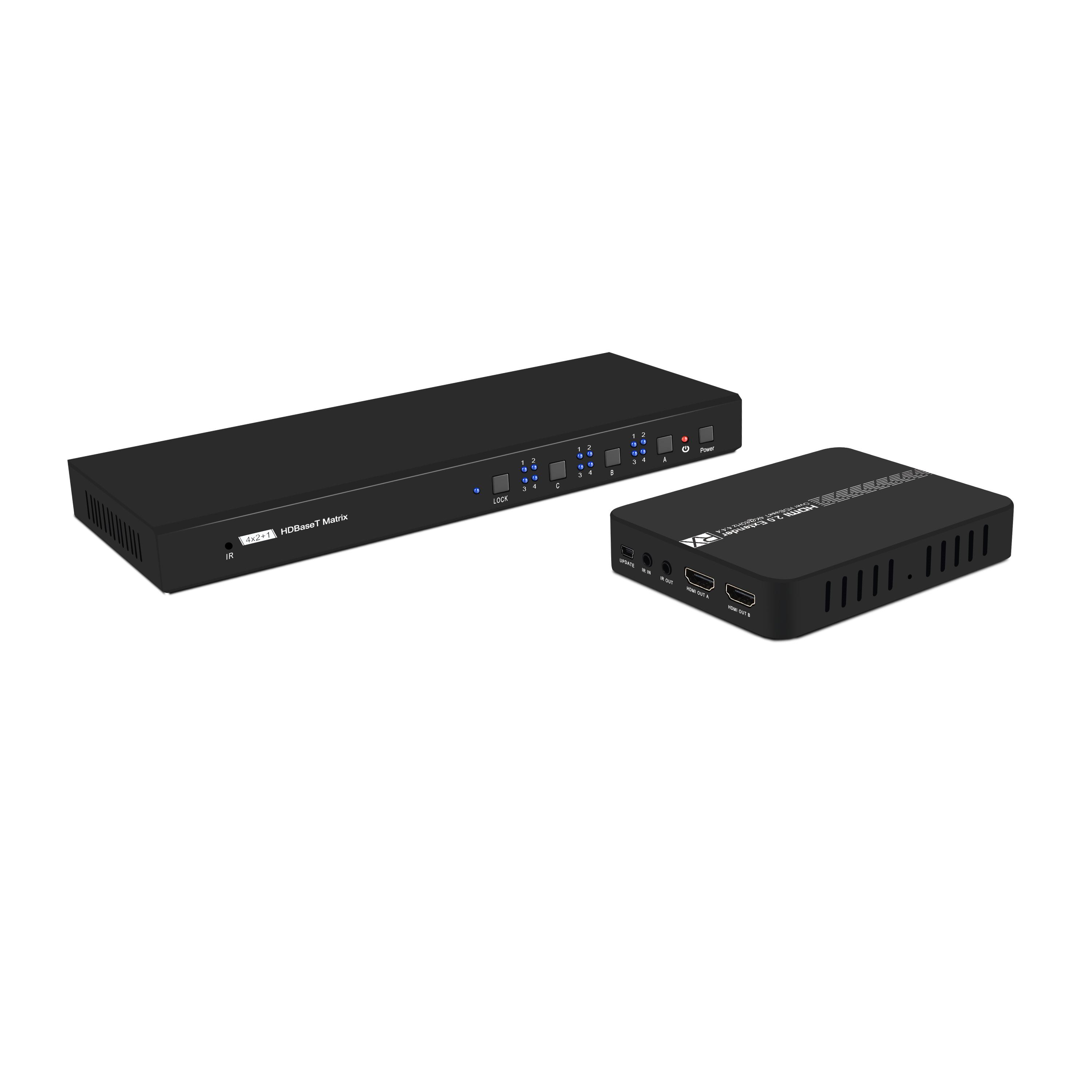

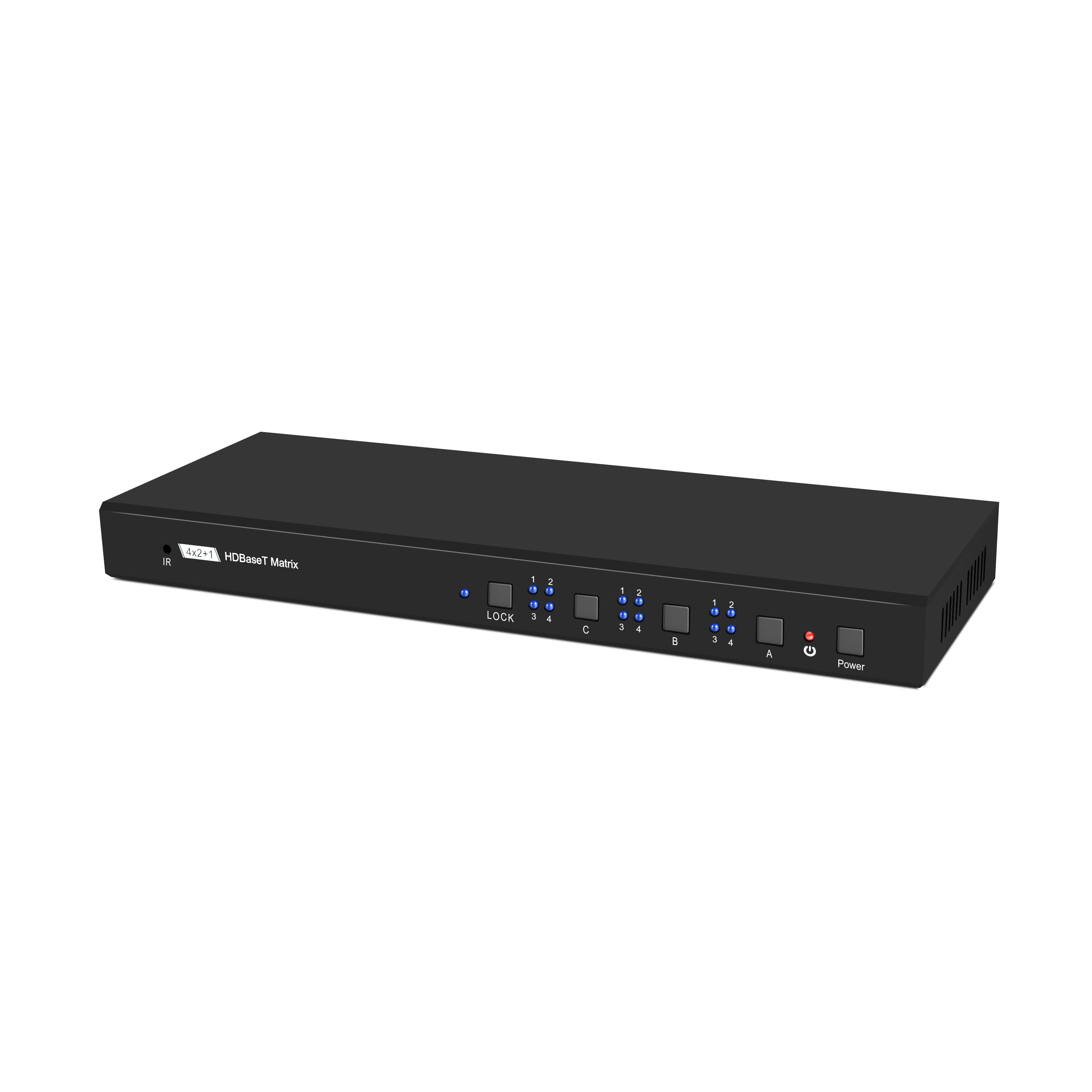

VK-402H 18G HDBaseT Matrix 4X2+1

VK-402H 18G HDBaseT Matrix 4X2+1

Product Specification:
1. Select and switch between any of the 4 HDMI source devices to any of the 2 HDMI displays simultaneously.
2. HDMI 2.0 and HDCP 2.2 compliant. 18Gbps bandwidth and supports up to 4K@60Hz YUV 4:4:4.

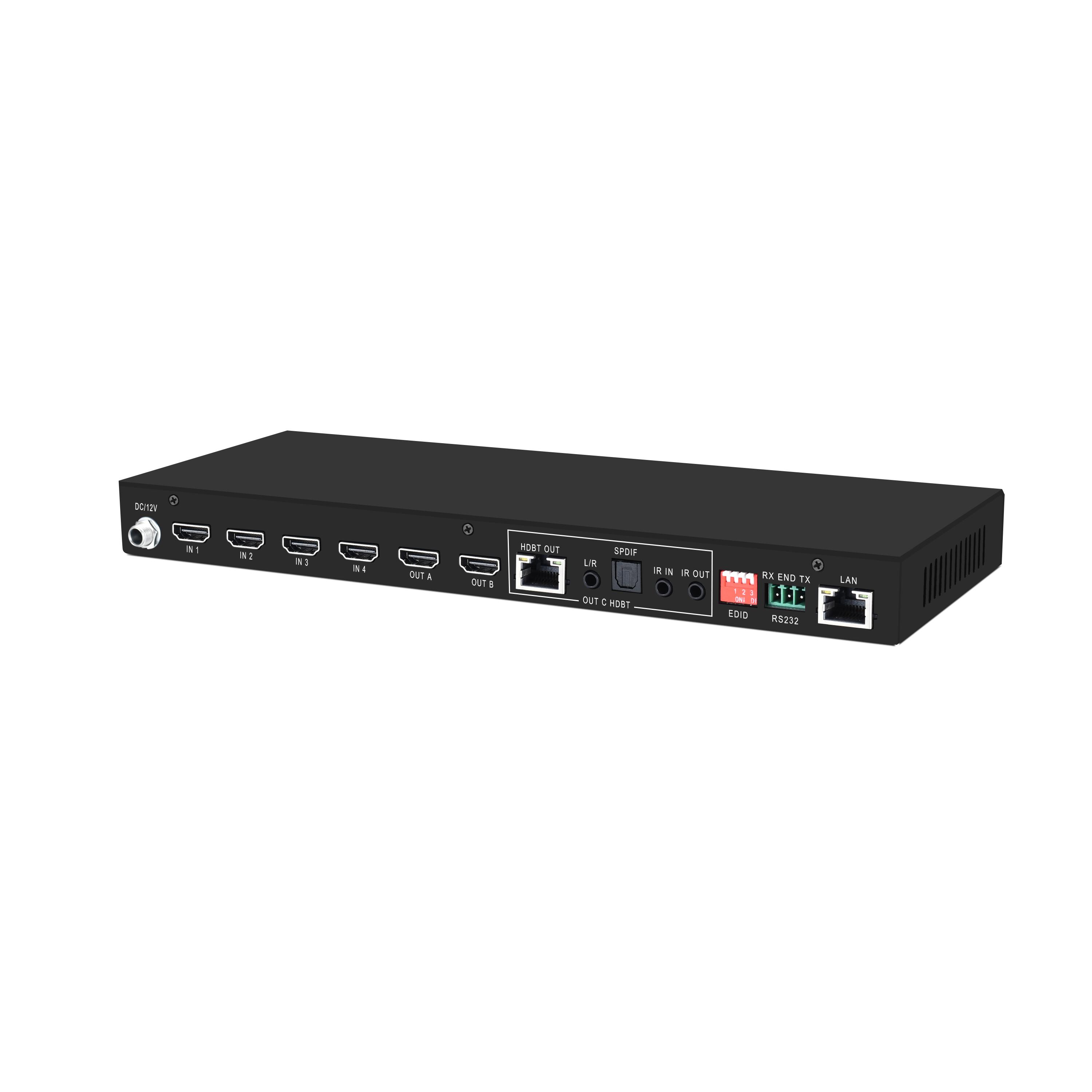

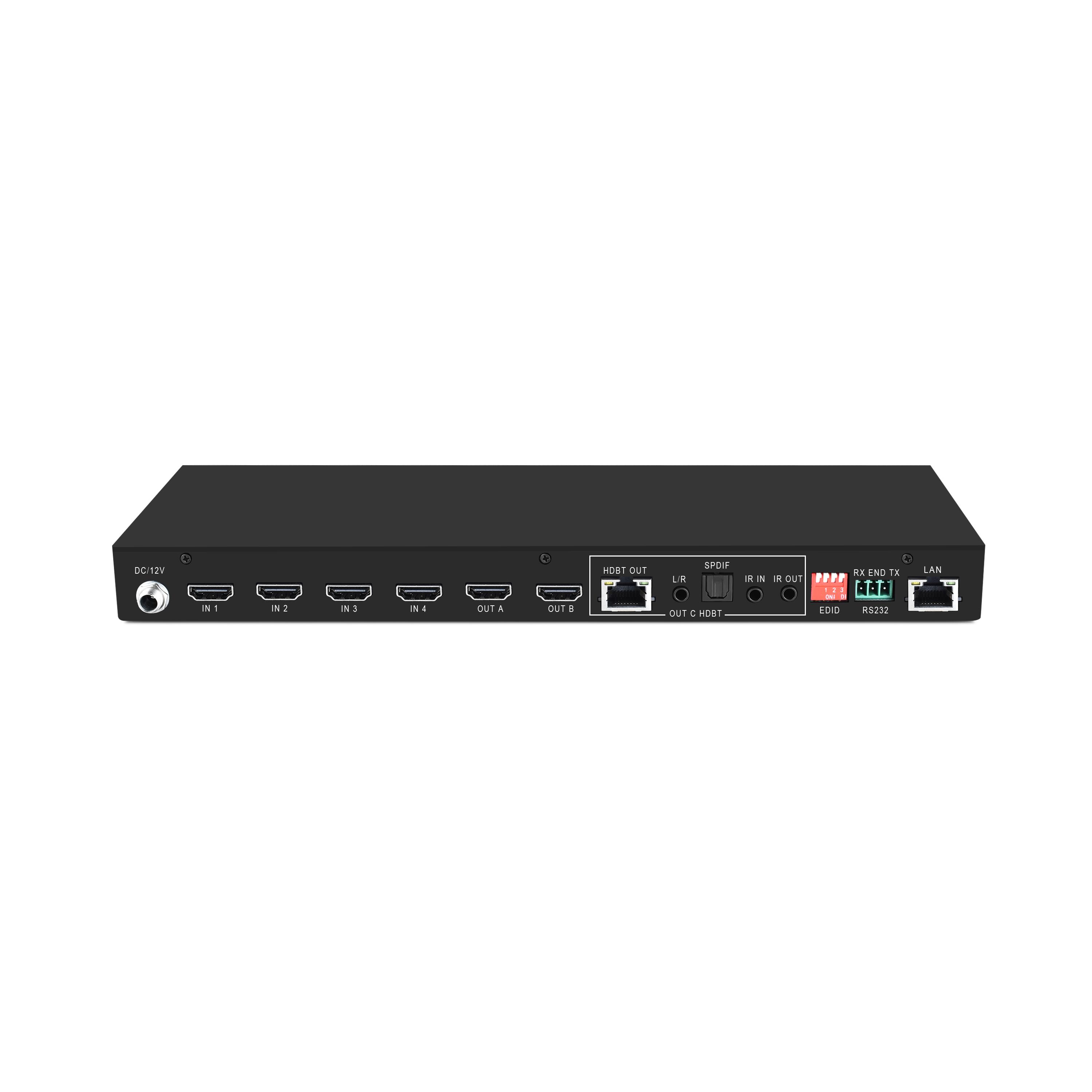

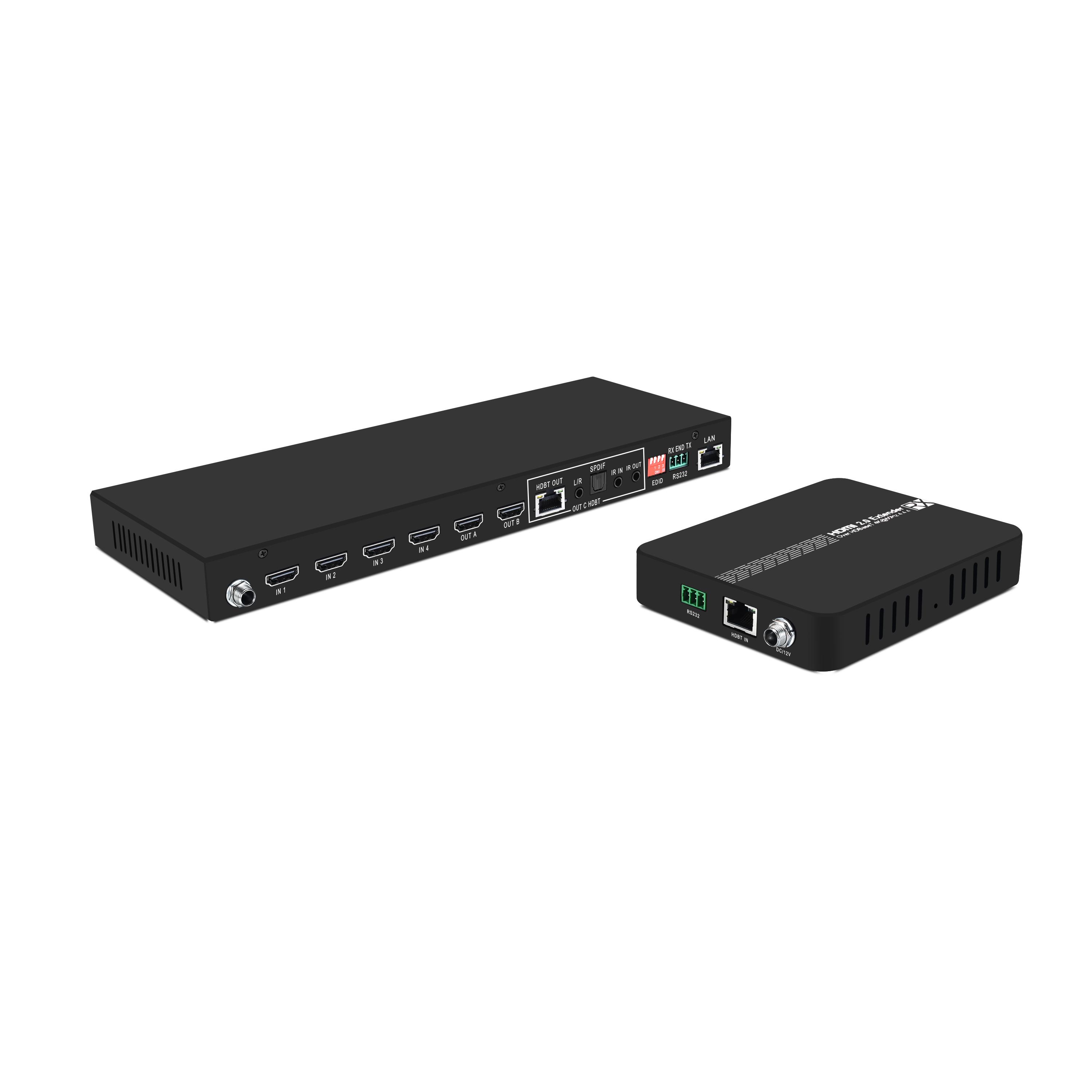

3. 2 HDMI output and 1 Cat6/7 output with 1 receiver,the receiver supports 2 HDMI out.
4. The CAT6 output:Up to 1080P@60Hz in 70 meters(230ft) ,4K@60Hz in 40 meters.
5. Supports bi-directional IR control,powerful EDID management,and 4K to 1080p downscaling.
6. Supports PoC, the CAT 6/7 Receivers do not need power adapters, they can be powered from the Matrix Switcher over CAT cables.

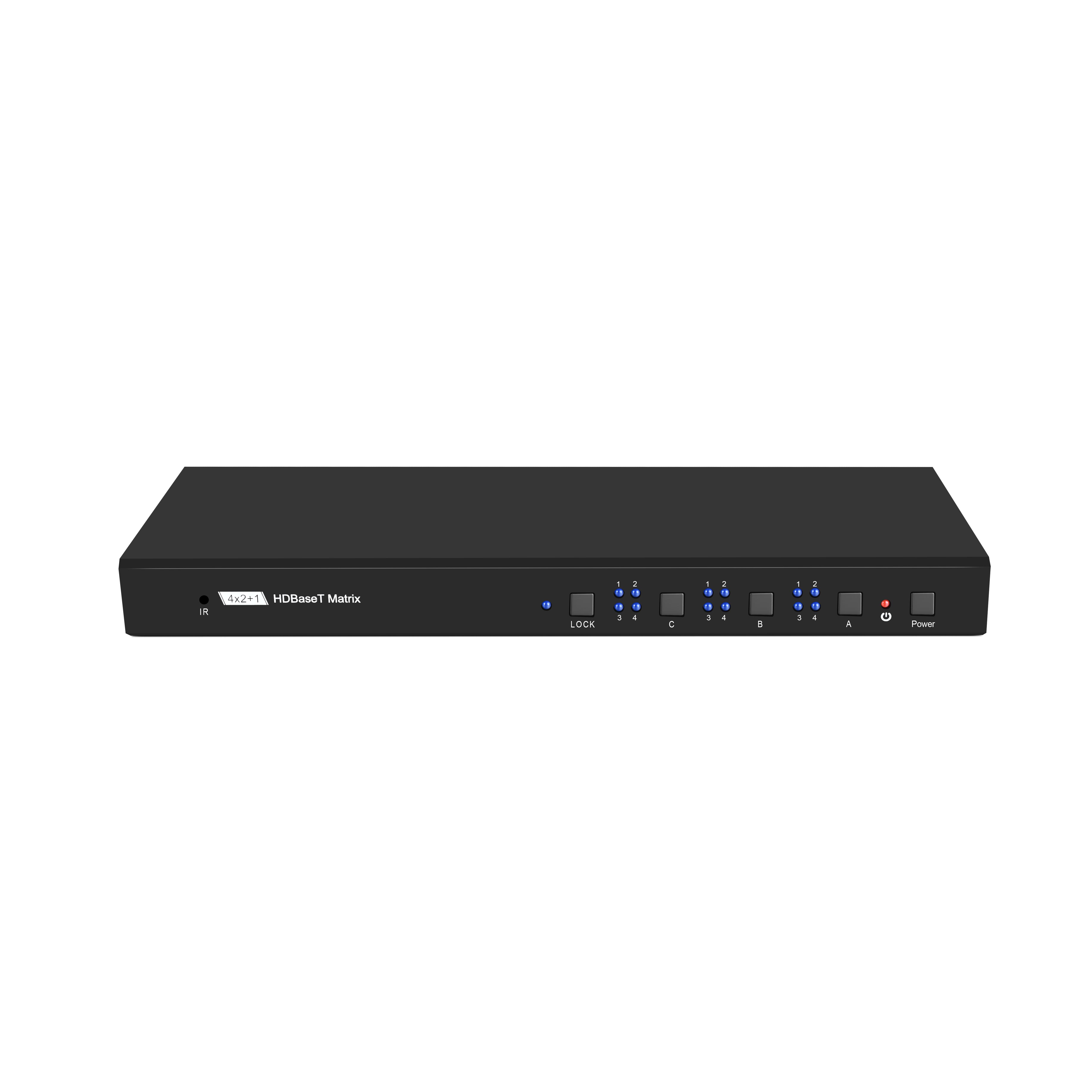

7. Controllable by front panel buttons, remote, RS232, and WEB GUI.
8. Supports audio extra output(L/R and SPDIF ports).
Product Description

This is a high performance HDMI Matrix with four HDMI inputs & 2 outputs. It allows any source (Blue-Ray player,HD DVD player,satellite receiver,game system,etc.) to be shown on the any of the two displays simultaneously,and supports 4KX2K/60 HZ. Specially you can connect the Cat out port in the matrix with 1 receiver to transmit the signal distance up to 1080P@60Hz in 70 meters,4K@60Hz in 40 meters.
